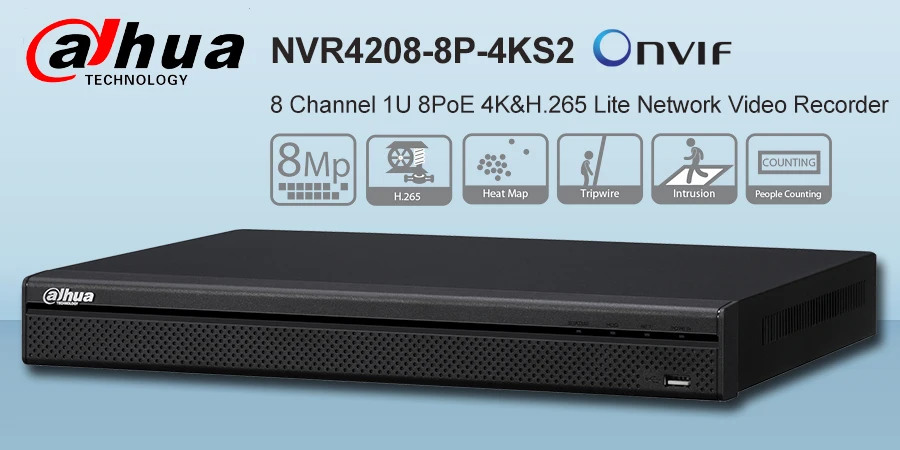

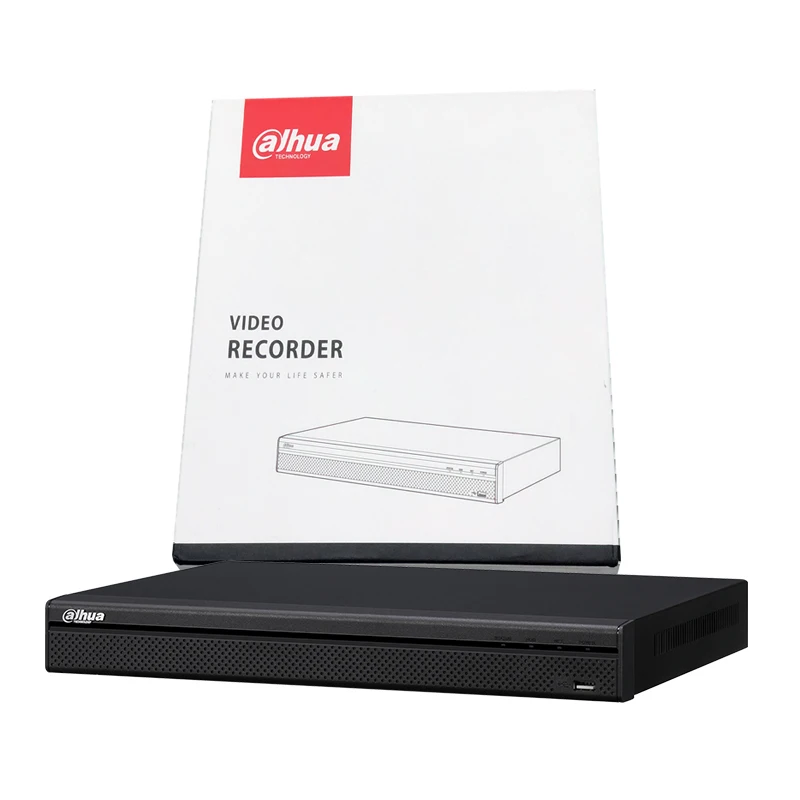

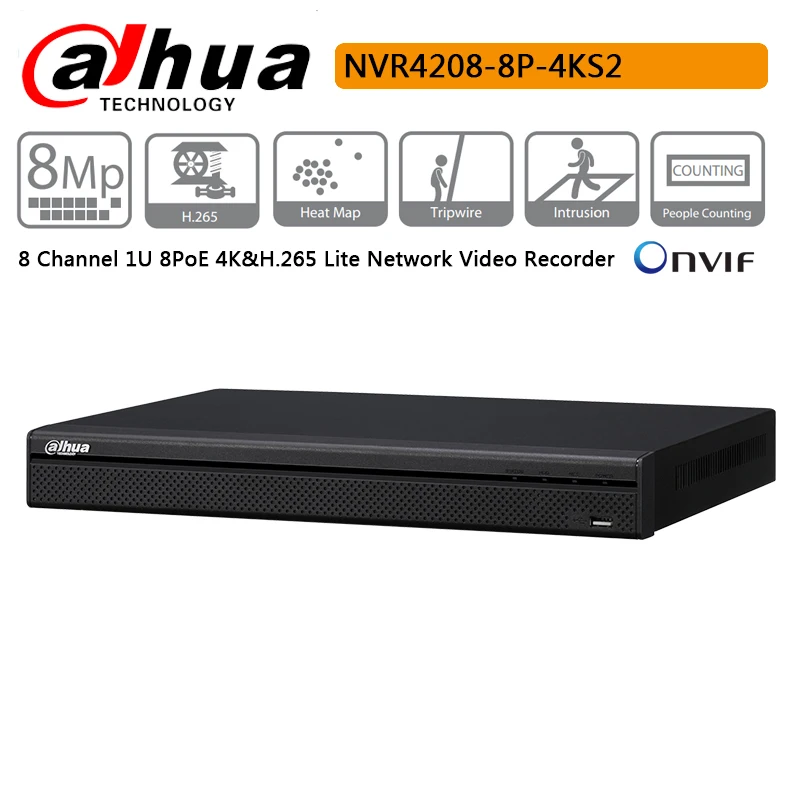

Original Dahua NVR4208-8P-4KS2 8 Channel 1U 8PoE 4K&H.265 Lite Network Video Recorder with Support IPC UPnP, 8PoE ports

Model Number NVR4208-8P-4KS2

Technology Network

Compression Format H.265

Compression Format M-JPEG

Compression Format H.264

Video Input Interface HDMI

Audio Input 2 RCA

Audio Input 1 RCA

Video Standard NTSC

Video Standard PAL

Video Resolution 4K

Video Resolution 1080P

Video Output 1VGA + 1HDMI

Video Output 1CH HDMI 1920X1080 60Hz

Audio Output 1CH RCA

Hard drive Interface Type SATA

Hard Drive Size 3.5''

Network Interface RJ45 10/100M

Communication Interface RS232

Network Protocol TCP/IP

IP Mode Static IP address

Supported Mobile Systems Android

Supported Mobile Systems iPhone OS

Supported Operating Systems Microsoft Windows XP

Supported Operating Systems Microsoft Windows 7

Supported Operating Systems Microsoft Windows Vista

Backup Type USB Flash Divers

Alarm Action Local Alarm

Two-way Audio YES

e-Cloud(P2P) YES

POE 8 Port

Brand Name Dahua

NVR4208-8P-4KS2 8 Channel 1U 8PoE 4K&H.265 Lite Network Video Recorder > H.265/H.264 codec decoding > Max 200Mbps Incoming Bandwidth > Up to 8MP Resolution for Preview and Playback > Up to 2ch@4K/8ch@1080P decoding > HDMI/VGA simultaneous video output > Support IPC UPnP, 8PoE ports ​ Dear,if you want to buy 6TB,we sell 199.99 usd, contact ourcustomerservice in private,thanks. * Specifications：Swipe right to see more（on app） → System Main Processor Quad-core embedded processor Operating System Embedded LINUX Aduio and Video IP Camera Input 8 Channel Two-way Talk 1 Channel Input, 1 Channel Output, RCA Display Interface 1 HDMI, 1 VGA Resolution HDMI:3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 Decoding Capacity 2ch@4K 30fps, 8ch@1080P 30fps Multi-screenDisplay 1/4/8/9 OSD Camera title, Time, Camera lock, Motion detection, Recording Recording Compression H.265/ H.264 Resolution 8Mp/ 6Mp/ 5MP/4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. Record Rate 200Mbps Bit Rate 16Kbps ~ 20Mbps Per Channel Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering Alarm input 4 Channel Relay Output 2 Channel Playback and Backup Playback 1/4/9 Search Mode Time /Date,MD and Exact Search (accurate to second), Smart search Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom Backup Mode USB Device/Network Third-party Support Third-party Support Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more Network Interface 1 RJ-45 Port (10/100/1000Mbps) Ethernet Port 1 Independent 1000Mbps Ethernet Port PoE 8 ports (IEEE802.3at/af) Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip Max. User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 2.4, SDK, CGI Storage Internal HDD 2 SATA III Ports, Up to 6 TB capacity for each HDD HDD Mode Single Auxiliary Interface USB 2 ports (1 USB2.0, 1 USB3.0) RS232 N/A RS485 N/A Electrical Power Supply AC100V ~ 240V, 50 ~ 60 Hz Power Consumption NVR: < 9.6W(without HDD) PoE: Max 25.5w for single port, 130w in total Environmental Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH Construction Dimensions 1U, 375mm×327.5mm×53mm (14.8" x 12.9" x2.1") Net Weight 2.6kg (5.7 lb) (without HDD) Gross Weight 4kg(8.8 lb)(without HDD) Certifications CE EN55032, EN55024, EN50130-4, EN60950-1 FCC Part 15 Subpart B, ANSI C63.4-2014 UL UL60950-1
